Product Tested

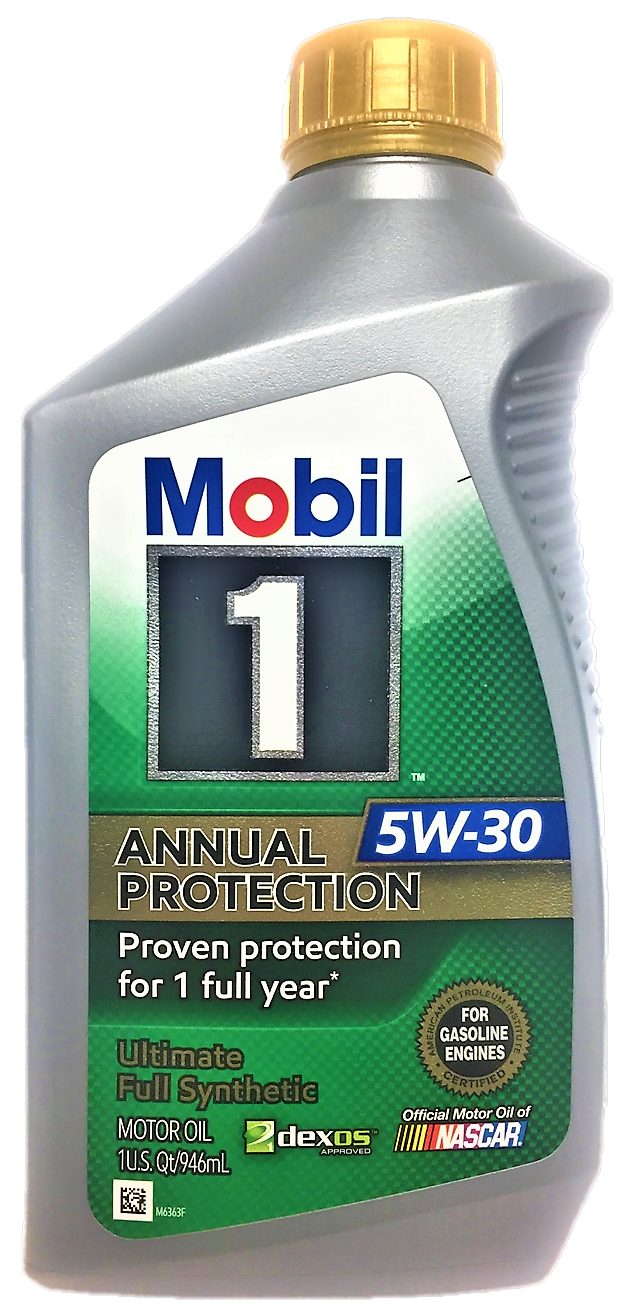

front label

Click above for larger image

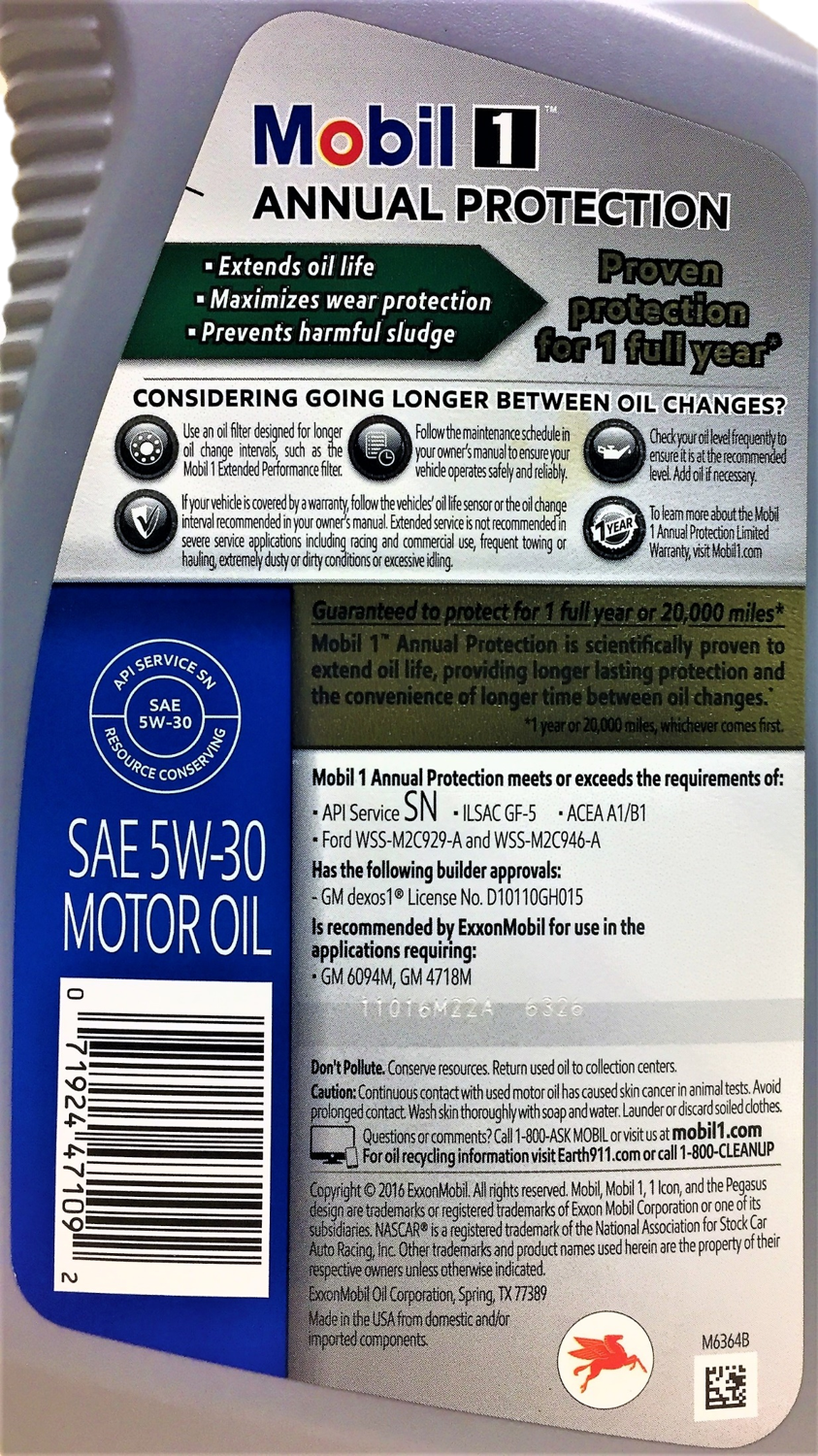

back label

Click above for larger image

ExxonMobil Oil Corporation

Company and Product Information

Corporate Office:
ExxonMobil Oil Corporation
Fairfax, VA

Website(s): www.mobil.com

ExxonMobil Corp., headquartered in Irving, TX, is an American multinational oil and gas company. The company was incorporated in 1882 and is currently the largest publically traded oil and gas company in the world. The company has three primary business segments, including upstream, downstream, and chemical. The company’s lubricants business resides in the downstream segment where it operates as ExxonMobil Fuels, Lubricants & Specialties Marketing Company. ExxonMobil is a leading global manufacturer and marketer of automotive and industrial lubricants and enjoys a long and strong position in synthetic lubricants, including the Mobil1 brand.

Mobil 1 Annual Protection Ultimate Full Synthetic
SAE 5W-30 Motor Oil

Product: Mobil 1 Annual Protection Ultimate Full Synthetic
Viscosity Grade: SAE 5W-30
Labeled: API SN/ILSAC GF-5

Marketed by: ExxonMobil Oil Corporation, Fairfax, VA

Purchased at: Edison, NJ

Date of purchase: 3/12/2018



Website(s): www.mobil.com

Test Results and Assessment:

The results of the tests conducted on this sample meet the SAE J300 specifications for the SAE Viscosity Grade listed on the product label, and are consistent with the listed API Service Categories.



bottle icon Physical Properties pass
Elemental Analysis pass
Labeling warning
Viscosity @ 100°C, cSt (ASTM D445)

The results of the Kinematic Viscosity @ 100ºC test conducted on this sample meet the requirements of SAE J300.
FusionCharts XT will load here!
Cold Cranking Viscosity, mPa s (cP) (ASTM D5293)

The results of the Cold Cranking Viscosity test conducted on this sample meet the requirements of SAE J300.
FusionCharts XT will load here!
Volatility, mass % loss, 1 hr, @ 250ºC (ASTM D5800)

The results of the Volatility, mass % loss, 1 hr, @ 250ºC test conducted on this sample meet the requirements of API SN/ILSAC GF-5.
FusionCharts XT will load here!
Phosphorus, ppm (ASTM D5185)

The results of the Phosporus test conducted on this sample meet the requirements of API SN/ILSAC GF-5.
FusionCharts XT will load here!

Note1: Although laboratory tests alone cannot be used to establish if engine oil meets an API Service Category, they can be used to determine if it doesn't. Note2: The specification for cold cranking viscosity includes only a maximum value; the minimum value shown in the “standard” area of the chart is truncated for illustrative purposes.

PHYSICAL TESTS (click for test details) - a Standard Mobil 1 Annual Protection
TBN, mg KOH/g (ASTM D2896) 10.04
Viscosity @ 100ºC, cSt (ASTM D445) 9.3 to <12.5 11.24
Viscosity @40ºC, cSt (ASTM D445) 67.52
Viscosity Index (ASTM D2270) 160
Viscosity @-30ºC mPa s (cP) (ASTM D5293) 6,600 Max 5,175
Volatility, mass % loss, 1 hr, @ 250ºC (ASTM D5800) 15 Max -c 8.5
ELEMENTAL ANALYSIS (click for test details) - a, b
Additives
Calcium, ppm 1,114
Magnesium, ppm 828
Phosphorus, ppm 600 to 800 -d 746
Zinc, ppm 810
Molybdenum,  ppm 93
Barium, ppm <1
Boron, ppm 106
Silicon, ppm 4
Potassium, ppm <5
Manganese, ppm <1
Titanium, ppm <1
Copper, ppm <1
Sodium, ppm <5
Vanadium, ppm <1
Contaminants
Silver, ppm <1
Aluminum, ppm <1
Chromium, ppm <1
Iron, ppm <1
Nickel, ppm <1
Lead, ppm <1
Antimony, ppm <1
Tin, ppm <1
  1. Standards, shown in yellow are established by API, SAE and others.
  2. Test Method for metal analysis is ASTM D5185.
  3. This specification is expressed to two significant figures, therefore results up to 15.5 are considered on specification.
  4. This specification is expressed to one significant figure, therefore results between 550 and 849 are considered on specification.
