The Data Speak for Itself...
Click above for larger image
Click above for larger image
Corporate Office:
Phillips 66 Company
Houston, TX 77210
Website(s): www.phillips66lubricants.com
Phillips 66 is a diversified energy manufacturing and logistics company. With a portfolio of Midstream, Chemicals, Refining, and Marketing and Specialties businesses, the company processes, transports, stores and markets fuels and products globally. For more information on Phillip 66's family of lubricants, visit www.phillips66lubricants.com.

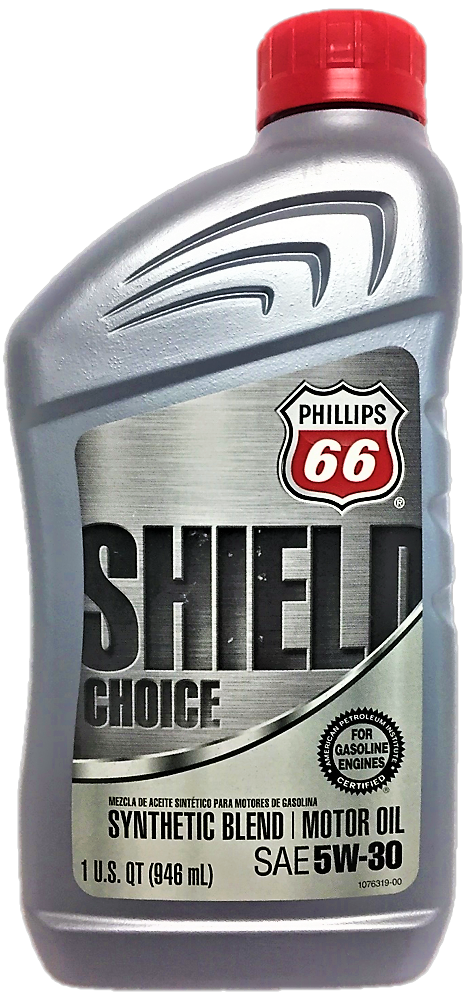

Manufactured by: Phillips 66 Company, Houston, TX
Purchased at: Oklahoma City, OK
Date of purchase: 3/29/2017
Website(s): www.phillips66lubricants.com
The results of the tests conducted on this sample meet the SAE J300 specifications for the SAE Viscosity Grade listed on the product label, and are consistent with the listed API Service Categories.
|
Physical Properties |  |
||||||||
| Elemental Analysis | |
|||||||||

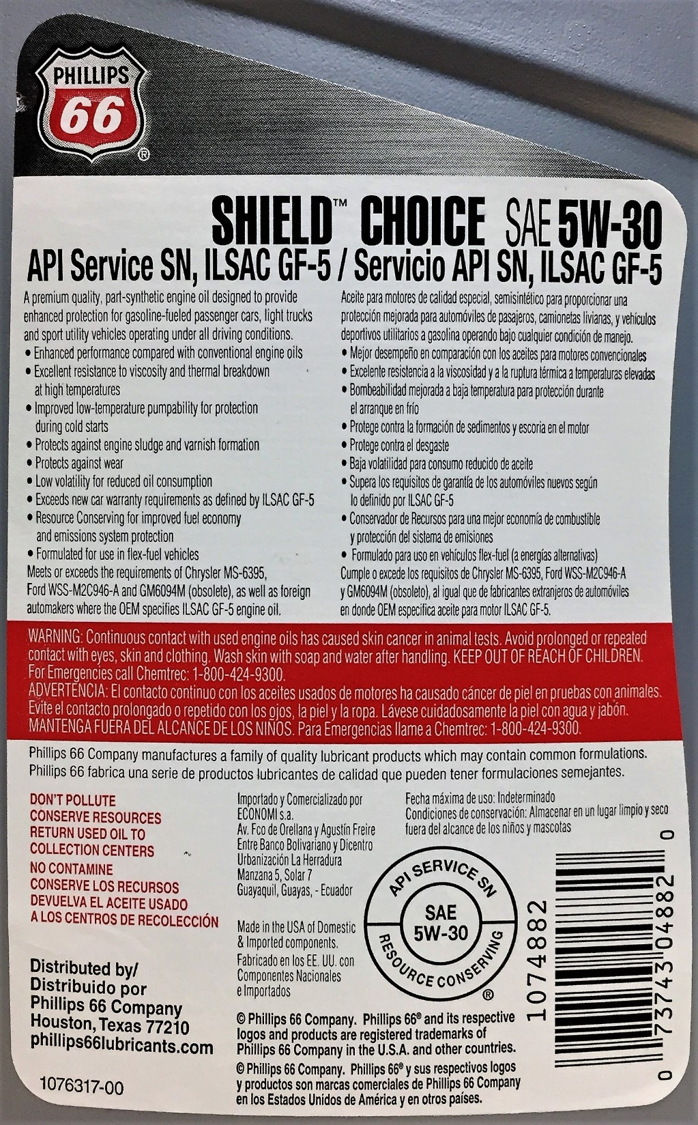

| Labeling | |
|||||||||
|
||||||||||
Note1: Although laboratory tests alone cannot be used to establish if engine oil meets an API Service Category, they can be used to determine if it doesn't. Note2: The specification for cold cranking viscosity includes only a maximum value; the minimum value shown in the “standard” area of the chart are truncated for illustrative purposes.
| PHYSICAL TESTS (click for test details) - a | Standard | Phillips 66 Shield Choice |
| TBN, mg KOH/g (ASTM D2896) | 8.12 | |
| Viscosity @ 100ºC, cSt (ASTM D445) | 9.3 to <12.5 | 11.10 |
| Viscosity @40ºC, cSt (ASTM D445) | 67.19 | |
| Viscosity Index (ASTM D2270) | 158 | |
| Viscosity @-30ºC mPa s (cP) (ASTM D5293) | 6,600 Max | 5,766 |
| Volatility, mass % loss, 1 hr, @ 250ºC (ASTM D5800) | 15 Max -c | 14.6 |
| ELEMENTAL ANALYSIS (click for test details) - a, b | ||
| Additives | ||
| Calcium, ppm | 2,385 | |
| Magnesium, ppm | 12 | |
| Phosphorus, ppm | 600 to 800 -d | 823 |
| Zinc, ppm | 838 | |
| Molybdenum, ppm | 19 | |
| Barium, ppm | <1 | |
| Boron, ppm | 188 | |
| Silicon, ppm | 6 | |
| Potassium, ppm | <5 | |
| Manganese, ppm | <1 | |
| Titanium, ppm | <1 | |
| Copper, ppm | <1 | |
| Sodium, ppm | <5 | |
| Vanadium, ppm | <1 | |
| Contaminants | ||
| Silver, ppm | <1 | |
| Aluminum, ppm | 2 | |
| Chromium, ppm | <1 | |
| Iron, ppm | <1 | |
| Nickel, ppm | <1 | |
| Lead, ppm | <1 | |
| Antimony, ppm | <1 | |
| Tin, ppm | <1 | |
|
||
