PETROLEUM QUALITY INSTITUTE OF AMERICA
The Data Speak for Itself...
Product Tested
Click above for larger image
Click above for larger image
Pep Boys
Company and Product Information
Corporate Office:
Pep Boys
3111 W Allegheny Ave
Philadelphia, PA 19132
Website(s): www.pepboys.com
Pep Boys operates more than 7,000 service bays in more than 800 stores (Supercenters and Service & Tire Centers) in 35 states and Puerto Rico

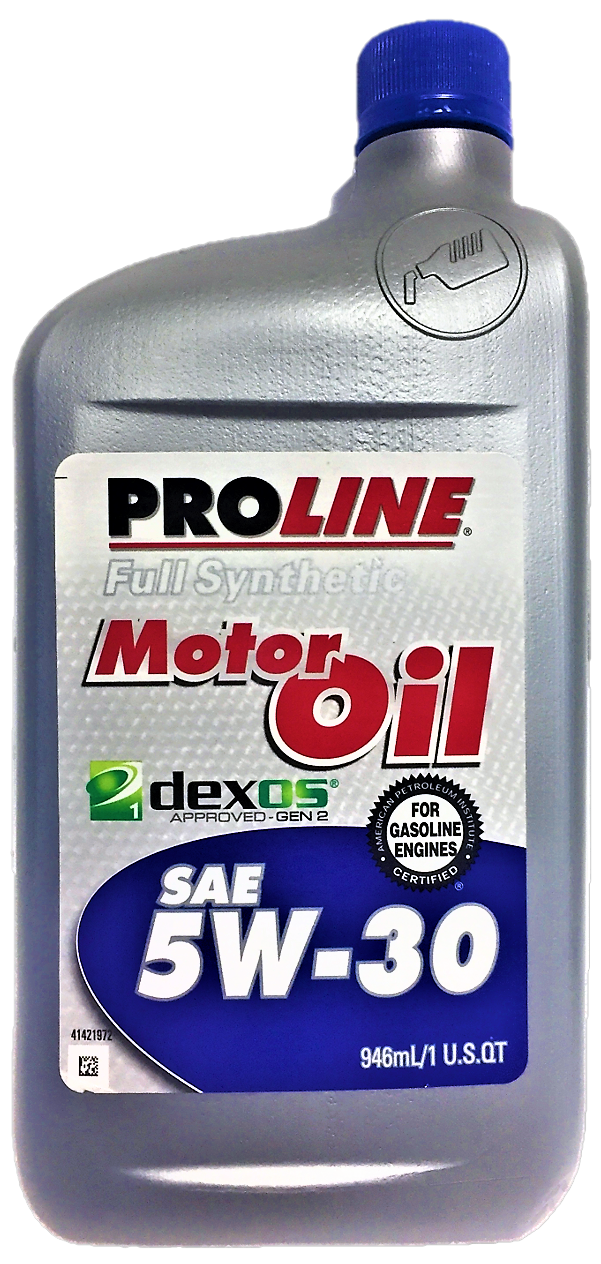

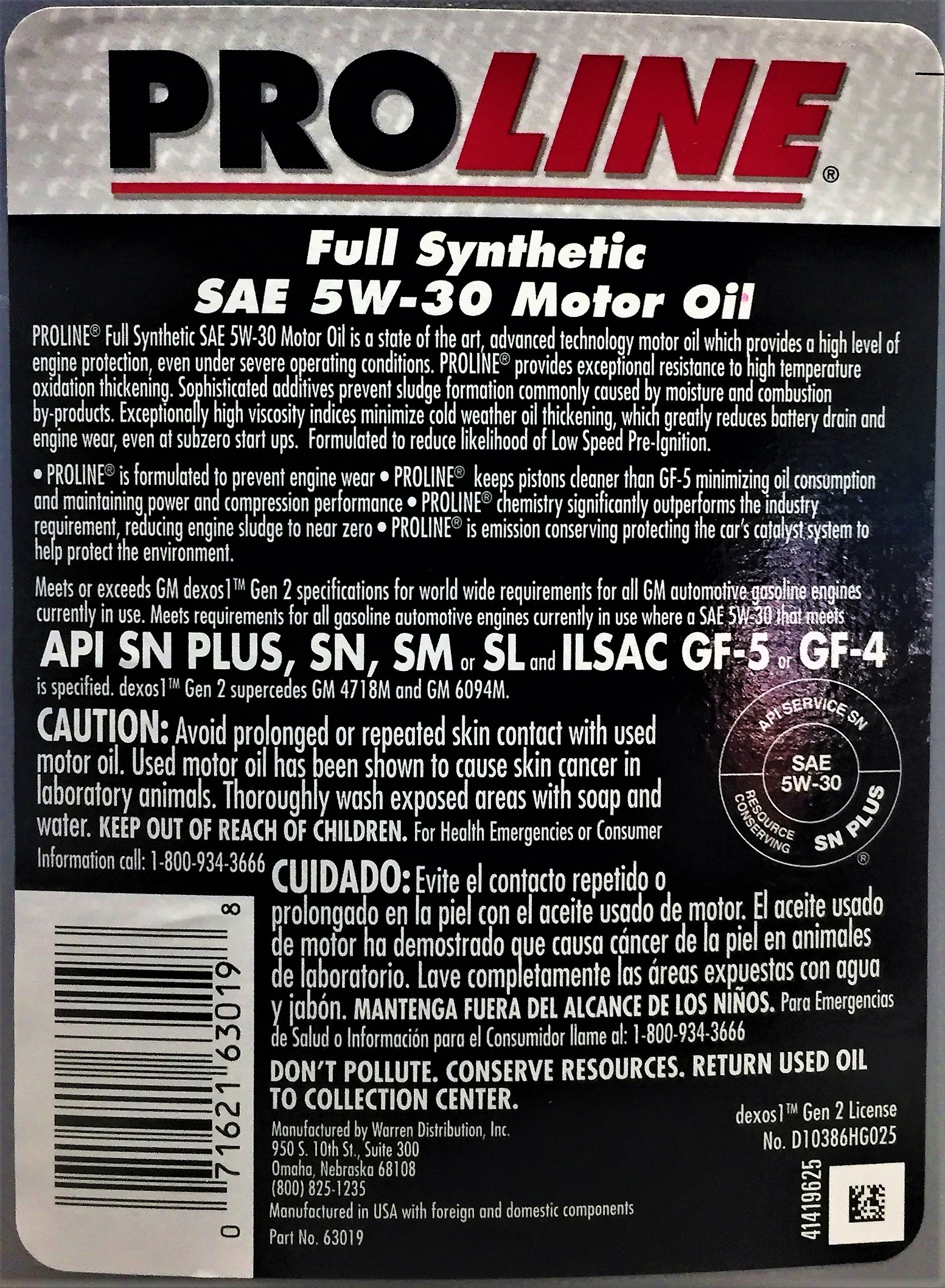

ProLine Full Synthetic
SAE 5W-30 Motor Oil
Product: ProLine Full Synthetic
Viscosity Grade: SAE 5W-30
Labeled: API SN PLUS/ILSAC GF-5/dexos1™ Gen2
Manufactured by: Warren Distribution, Omaha, NE
Distributed by: Pep Boys, Philadelphia, PA
Purchased at: Edison, NJ
Date of purchase: 4/25/2019
Website(s): www.pepboys.com
Test Results and Assessment:
The results of the tests conducted on this sample meet the SAE J300 specifications for the SAE Viscosity Grade listed on the product label, and are consistent with the listed API Service Categories.
.
|
Physical Properties |  |
||||||
| Elemental Analysis | |
|||||||
| Labeling | |
|||||||
|
||||||||
Note1: Although laboratory tests alone cannot be used to establish if engine oil meets an API Service Category, they can be used to determine if it doesn't. Note2: The specification for cold cranking viscosity includes only a maximum value; the minimum value shown in the “standard” area of the chart is truncated for illustrative purposes.
| PHYSICAL TESTS (click for test details) - a | Standard | ProLine |
| TBN, mg KOH/g (ASTM D2896) | 8.38 | |
| Viscosity @ 100ºC, cSt (ASTM D445) | 9.3 to <12.5 | 11.3 |
| Viscosity @40ºC, cSt (ASTM D445) | 62.9 | |
| Viscosity Index (ASTM D2270) | 175 | |
| Viscosity @-30ºC mPa s (cP) (ASTM D5293) | 6,600 Max | 3,753 |
| ELEMENTAL ANALYSIS (click for test details) - a, b | ||
| Additives | ||
| Calcium, ppm | 1,381 | |
| Magnesium, ppm | 656 | |
| Phosphorus, ppm | 600 to 800 -d | 766 |
| Zinc, ppm | 876 | |
| Molybdenum, ppm | 82 | |
| Barium, ppm | <1 | |
| Boron, ppm | 229 | |
| Silicon, ppm | 10 | |
| Potassium, ppm | <1 | |
| Manganese, ppm | <1 | |
| Titanium, ppm | <1 | |
| Copper, ppm | <1 | |
| Sodium, ppm | 3 | |
| Vanadium, ppm | <1 | |
| Contaminants | ||
| Silver, ppm | <1 | |
| Aluminum, ppm | <1 | |
| Chromium, ppm | <1 | |
| Iron, ppm | <1 | |
| Nickel, ppm | <1 | |
| Lead, ppm | <1 | |
| Antimony, ppm | <1 | |
| Tin, ppm | <1 | |
|
||
