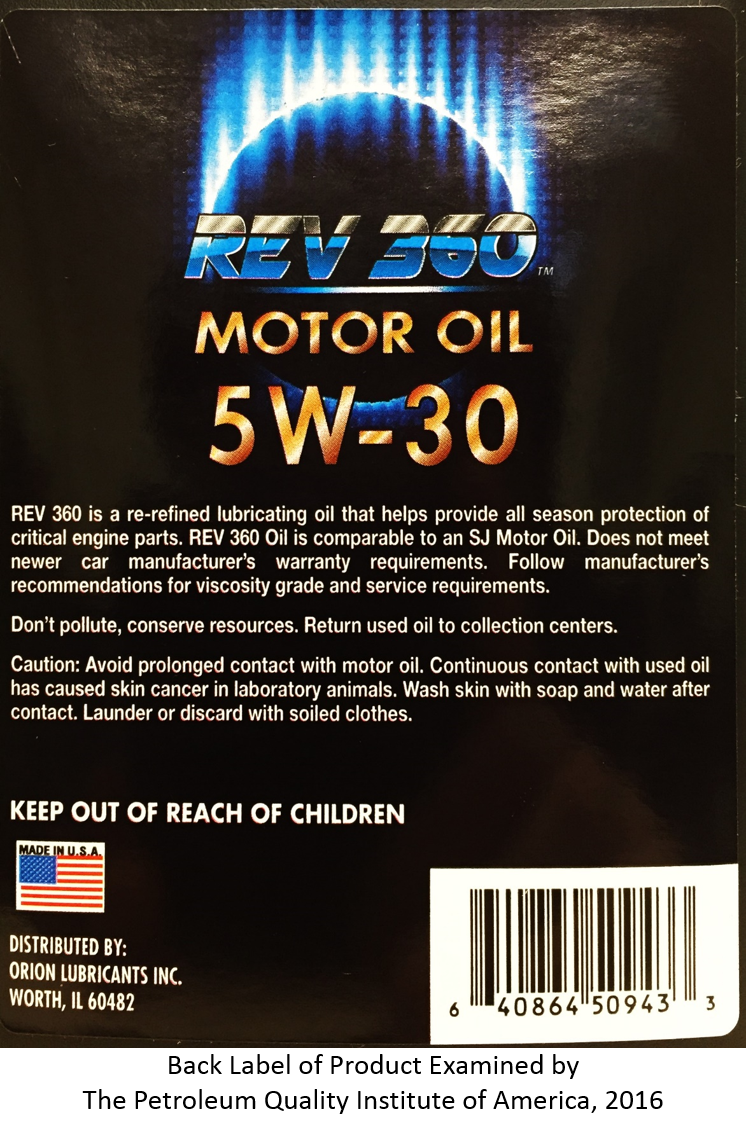

back label

Click above for larger image

Orion Lubricants Inc.

Company and Product Information

Corporate Office:
Orion Lubricants Inc.
Worth, IL 60482

Website(s):No Website Found

PETROLEUM QUALITY INSTITUTE OF AMERICA TEST PROGRAM

The Petroleum Quality Institute of America (PQIA) is an independent resource for information and insights on the quality of lubricants in the marketplace. Our mission is to serve the consumer of lubricants by randomly sampling and independently testing lubricants taken from the field. Test results are posted along with the brand names on the PQIA website. This webpage provides an analysis on the brand detailed below.

The following are the test results for the sample examined.

REV 360 5W-30
Motor Oil

Product: REV 360
Viscosity Grade: "5W-30"
Labeling: "comparable to an SJ Motor Oil"

Distributed by: Orion Lubricants Inc., Worth, IL

Purchased at: Bellwood, IL

Date of purchase: 2/17/2016



Website(s): No Website Found

Test Results and Assessment:


The labels on this sample refer to the product as a 5W-30 Motor Oil "FOR GASOLINE ENGINES" that "Helps provide all season protection of critical engine parts". In fact, this product does not meet any recognized definition of "Motor Oil" and is capable of causing damage to automobile engines!

The results of the tests conducted on this sample DO NOT meet the SAE J300 specifications for the SAE Viscosity Grade listed on the product label, and ARE NOT consistent with the referenced API Service Category. The Kinematic Viscosity @ 100°C is 74% lower than the minimum viscosity specification for this SAE grade, and the Noack Volatility is so high it caused an auto-shutdown of the testing instrument half way through the test. In addition, the organometallic additive levels in this sample indicate the product IS NOT suitable for use in virtually all automobile engines currently on the road, and the metal analysis results indicate the product may be contaminated with abrasive material. Use of this product in an automobile engine will likely cause serious harm to the engine.

bottle icon Physical Properties pass
Elemental Analysis pass
Labeling warning

Note: Although laboratory tests alone cannot be used to establish if engine oil meets an API Service Category, they can be used to determine if it doesn't.

PHYSICAL TESTS (click for test details) - a Standard REV 360
TBN, mg KOH/g (ASTM D2896) <0.05
Viscosity @ 100ºC, cSt (ASTM D445) 9.3 to 12.5 2.46
Viscosity @40ºC, cSt (ASTM D445) 10.18
Viscosity Index (ASTM D2270) 42
Viscosity @-30ºC mPa s (cP) (ASTM D5293) 6,600 Max 1,090
Volatility, mass % loss, 1 hr, @ 250ºC (ASTM D5800) 15 Max -c Note-d
ELEMENTAL ANALYSIS (click for test details) - a, b
Additives
Calcium <1
Magnesium <1
Phosphorus, ppm 600 to 800 4
Zinc, ppm <1
Molybdenum,  ppm <1
Barium, ppm <1
Boron, ppm <1
Silicon, ppm 3,043
Potassium, ppm <5
Manganese, ppm <1
Titanium, ppm <1
Copper, ppm <1
Sodium, ppm <5
Vanadium, ppm <1
Contaminants
Silver, ppm <1
Aluminum, ppm <1
Chromium, ppm <1
Iron, ppm <1
Nickel, ppm <1
Lead, ppm <1
Antimony, ppm <1
Tin, ppm <1
  1. Standards, shown in yellow are established by API, SAE and others.
  2. Test Method for metal analysis is ASTM D5185.
  3. This specification is expressed to two significant figures, therefore results up to 15.5 are considered on specification.
  4. At approximately 30 minutes, sample volatility caused instrument to auto-shutdown.
