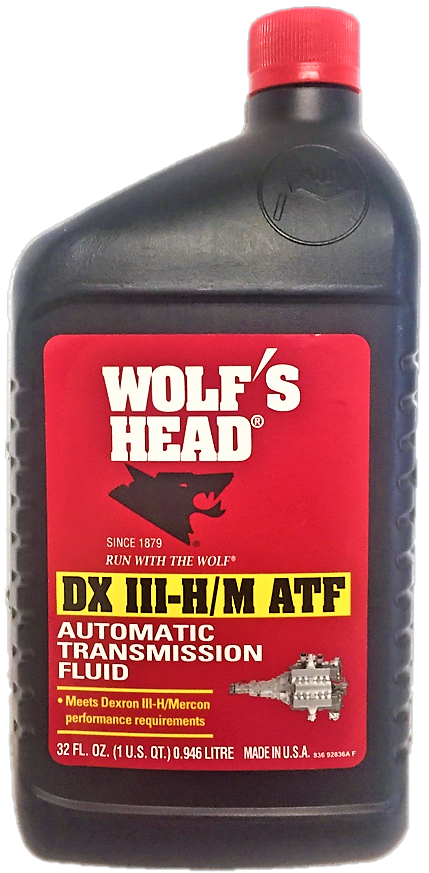

front label

Click above for larger image

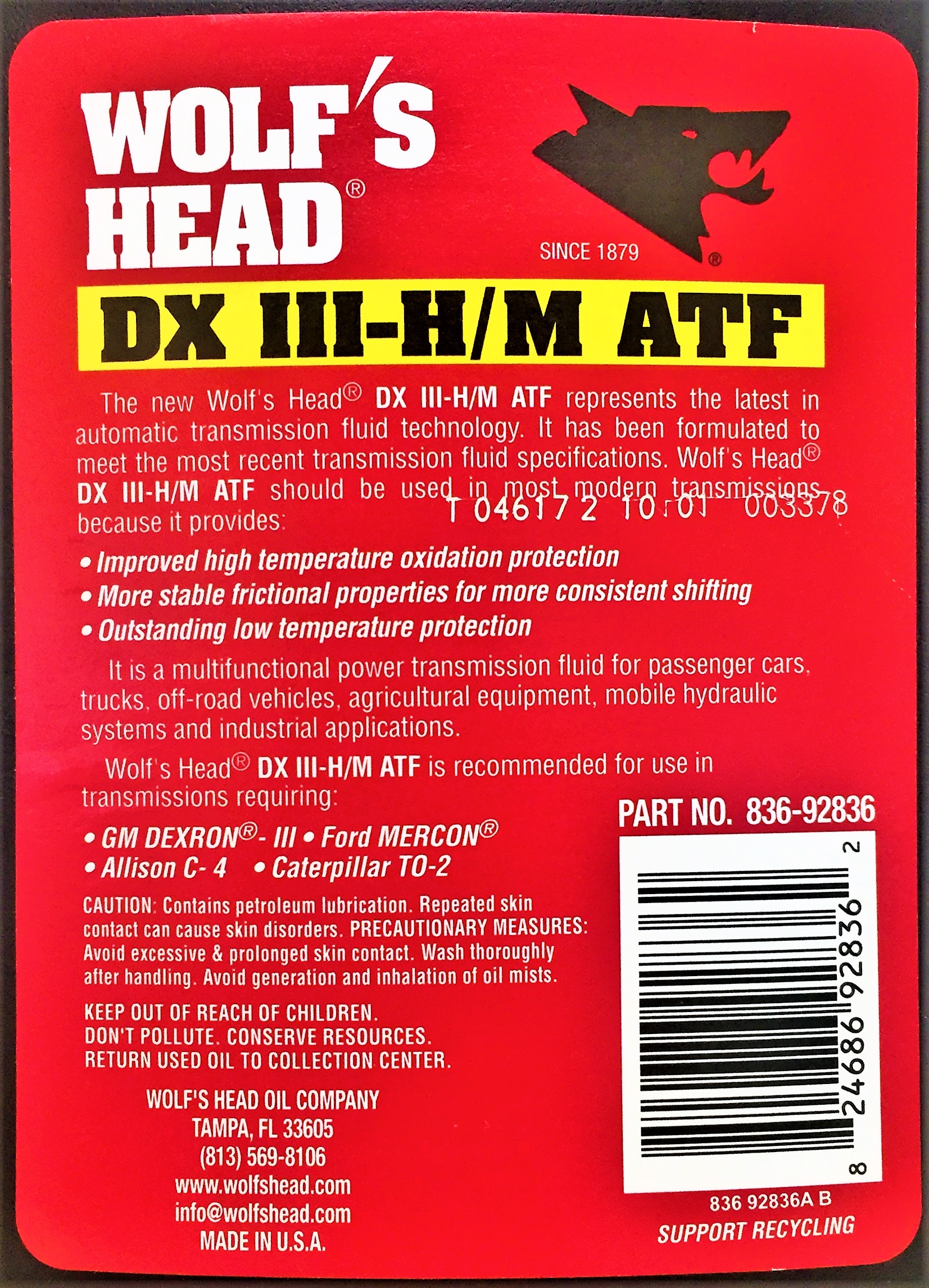

back label

Click above for larger image

Wolf's Head Motor Oil Company

Company and Product Information

Corporate Office:
Wolf's Head Motor Oil Company
1601 McCloskey Blvd.
Tampa, FL 33605

Website(s):  www.wolfshead.com



Wolf's Head
DX III-H/M ATF

Product: Wolf's Head
Labeled: DX III-H/M ATF

Manufactured By: Wolf's Head Oil Company, Tampa, FL

Purchased at: Marietta, OH

Date of purchase: 9/15/2017



Website(s):  www.wolfshead.com

Test Results and Assessment:

The results of the tests conducted on this sample are consistent with their labeled claims.

Note: The Petroleum Quality Institute of America, however, has concerns that the language on the back label of the product tested does not advise consumers of its limited use and, instead could be misleading by stating that It has been formulated to meet the most recent transmission fluid specifications. Wolf’s Head DX III-H/M ATF should be used in most modern transmission because it provides… Although the label also states Wolf’s Head DX III-H/M ATF is recommended for use in transmission requiring GM DEXRON – III, FORD MERCON, Allison C-4, and Caterpillar TO-2, it fails to provide adequate warning that Dexron III/Mercon fluids should not be used in vehicles built after 2005. Further, the label does not include language advising consumers to consult owner’s manual for proper fluid recommendations.

bottle icon Physical Properties pass
Elemental Analysis pass
Labeling warning
Flash Point of a DEXRON III/MERCON Fluid in °C (ASTM D92)

The results of the Flash Point test conducted on this sample meet the requirements of Dexron III/Mercon.
FusionCharts XT will load here!
Viscosity @ 100°C, cSt (ASTM D445)

The results of the Kinematic Viscosity @ 100ºC test conducted on this sample meet the requirements of Dexron III/Mercon.
FusionCharts XT will load here!
Brookfield Viscosity @-40°C mPa s (cP)

The results of the Brookfield viscosity test conducted on this sample meet the requirements of Dexron III/Mercon.
FusionCharts XT will load here!

Note: Although laboratory tests alone cannot be used to establish if engine oil meets an API Service Category, they can be used to determine if it doesn't.

PHYSICAL TESTS (click for test details) - a Standard Wolf's Head
Flash Point in ºC (ASTM D92) 170/177 Min-c 214
Viscosity @ 100ºC, cSt (ASTM D445) 6.8 Min 7.3
Viscosity @40ºC, cSt (ASTM D445)   37.4
Viscosity Index (ASTM D2270) 164
Brookfield Viscosity @-40ºC mPa s (cP) 20,000 Max 17,255
ELEMENTAL ANALYSIS (click for test details) - a, b
Additives
Calcium, ppm 198
Magnesium, ppm 1
Phosphorus, ppm   171
Zinc, ppm 18
Molybdenum,  ppm 0
Barium, ppm 0
Boron, ppm 54
Silicon, ppm 6
Potassium, ppm 4
Manganese, ppm 0
Titanium, ppm 0
Copper, ppm 0
Sodium, ppm 8
Vanadium, ppm 0
Contaminants
Silver, ppm 0
Aluminum, ppm 0
Chromium, ppm 0
Iron, ppm 0
Nickel, ppm 0
Lead, ppm 0
Antimony, ppm 0
Tin, ppm 0
  1. Standards, shown in yellow are established by API, SAE and others.
  2. Test Method for metal analysis is ASTM D5185.
  3. DEXRON® III, 170°C minimum, MERCON®, 177°C minimum.
